Description
Features:
Easy to install and simple to operate.

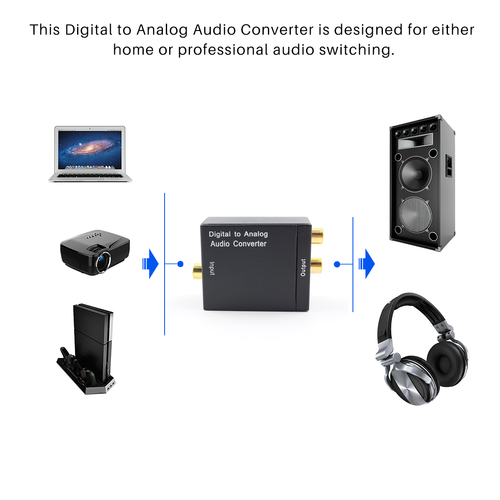

This Digital to Analog Audio Converter is designed for either home or professional audio switching.
It converts Coaxial or Toslink digital audio signals to analog L/R audio .

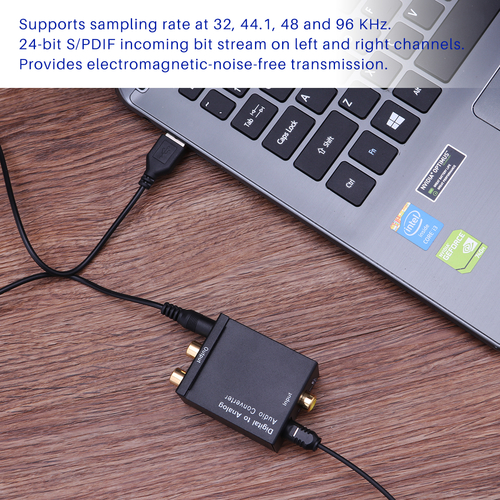

Supports sampling rate at 32, 44.1, 48 and 96 KHz.
24-bit S/PDIF incoming bit stream on left and right channels.
Provides electromagnetic-noise-free transmission.
Note:
1. Powered by USB port (DC 5V/1A) stable voltage and current, And filters some bad waves. So the DAC( Digital to Analog audio converter) will works better, And decode will more stable.
2. In addition ,Use USB output power that is more environmentally friendly, And reduce costs, And compatible with all country.
3. This item NOT convert Dolby.

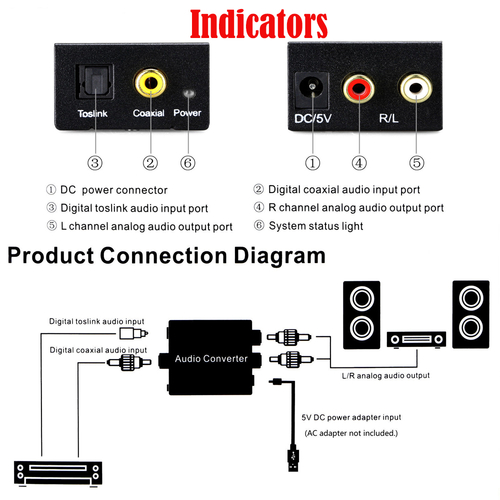

4. When connected to the Toslink and Coaxial cables at the same time, the product will give priority to Toslink input.
Specifications:
Type: Digital to Analog Audio Converter
Material: Plastic
Quantity: 1pc
Color: Black
External Power Supply:5V DC/1A
Power Consumption:0.5W
Sampling Rate:? 32, 44.1, 48 and 96 KHz
Input Audio: Coaxial or Toslink Digital Audio
Output Audio: L/R audio
Input Audio Connector:Toslink,1XRCA (Coaxial)
Output Audio Connector: 2XRCA?R/L?
Operating Temperature:0~70°C
Storage Temperature: -10~ 80°C
Operating Humidity:10%~85%RH (no condensation)
Storage Humidity: 5%~95%RH (no condensation)
Certification: FCC,CE,ROHS
Item Size: 5*4.2*2.7 Cm/2*1.7*1.1″(L*W*H)
Net Weight:0.063kg/2.2oz

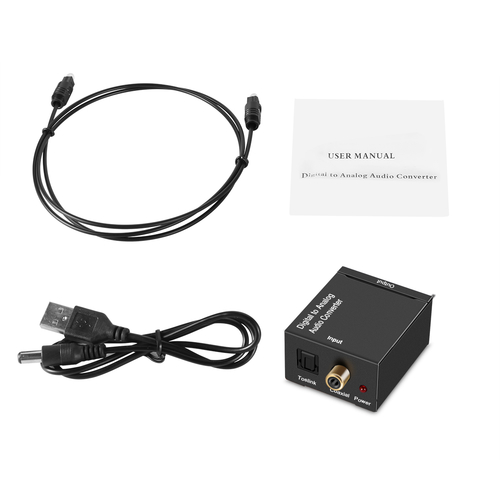

Package:
1*Digital to Analog Audio Converter
1*Fiber Optical Cable(96cm/3.1ft length)
1*USB Charging Cable(55cm/1.8ft length)
1*English User Manual
Package:
1*Digital to Analog Audio Converter
1*Fiber Optical Cable(96cm/3.1ft length)
1*USB Charging Cable(55cm/1.8ft length)
1*English User Manual
